Skelmersdale Project Complete

An existing large ground-level access door has been successfully transformed into a fully functional modular dock loading bay solution for our client in Skelmersdale.

The client required a safe and efficient way to unload sea containers, and turned to Armo to deliver a tailored solution designed around their operational needs.

Following a site assessment, we proposed and installed the following equipment:

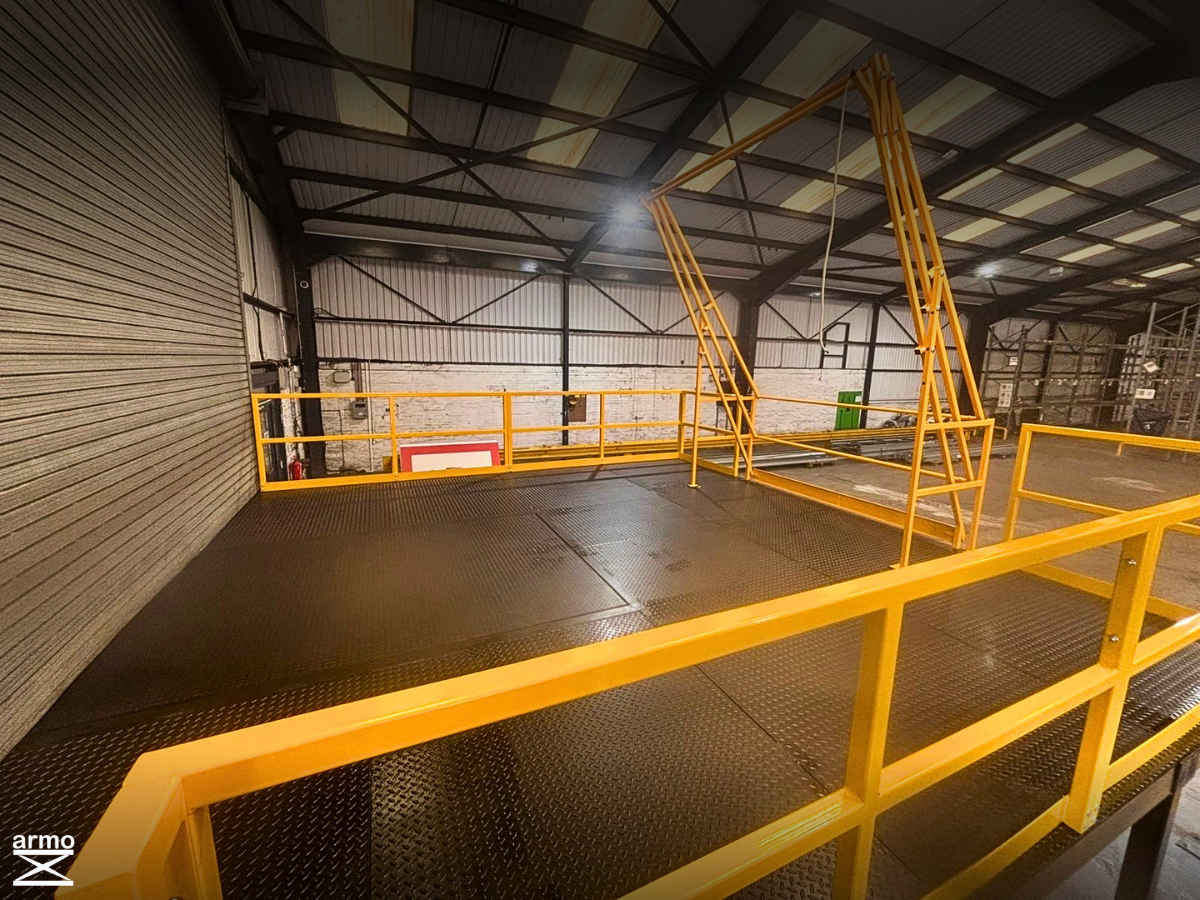

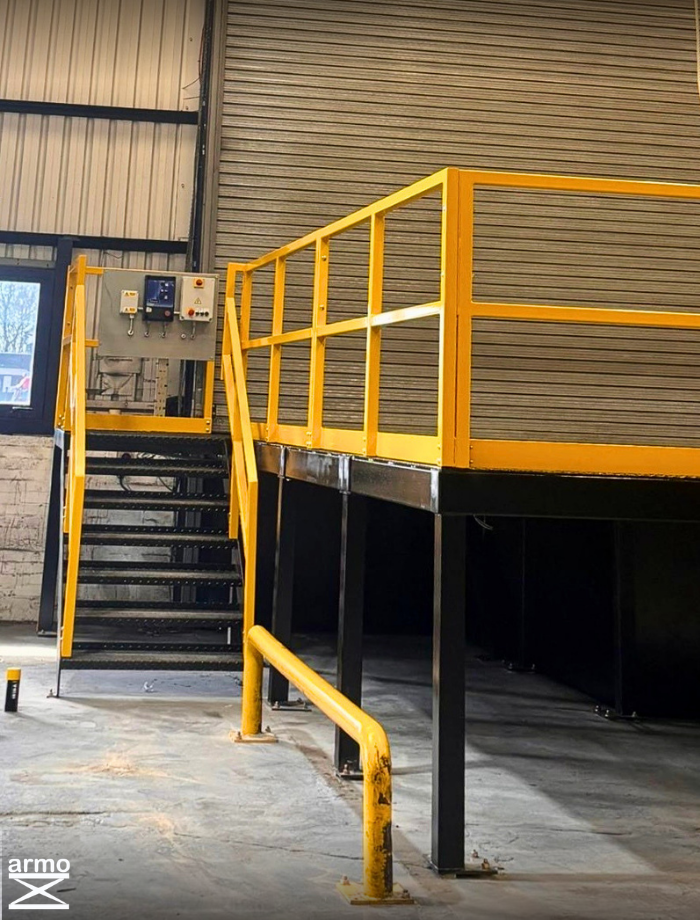

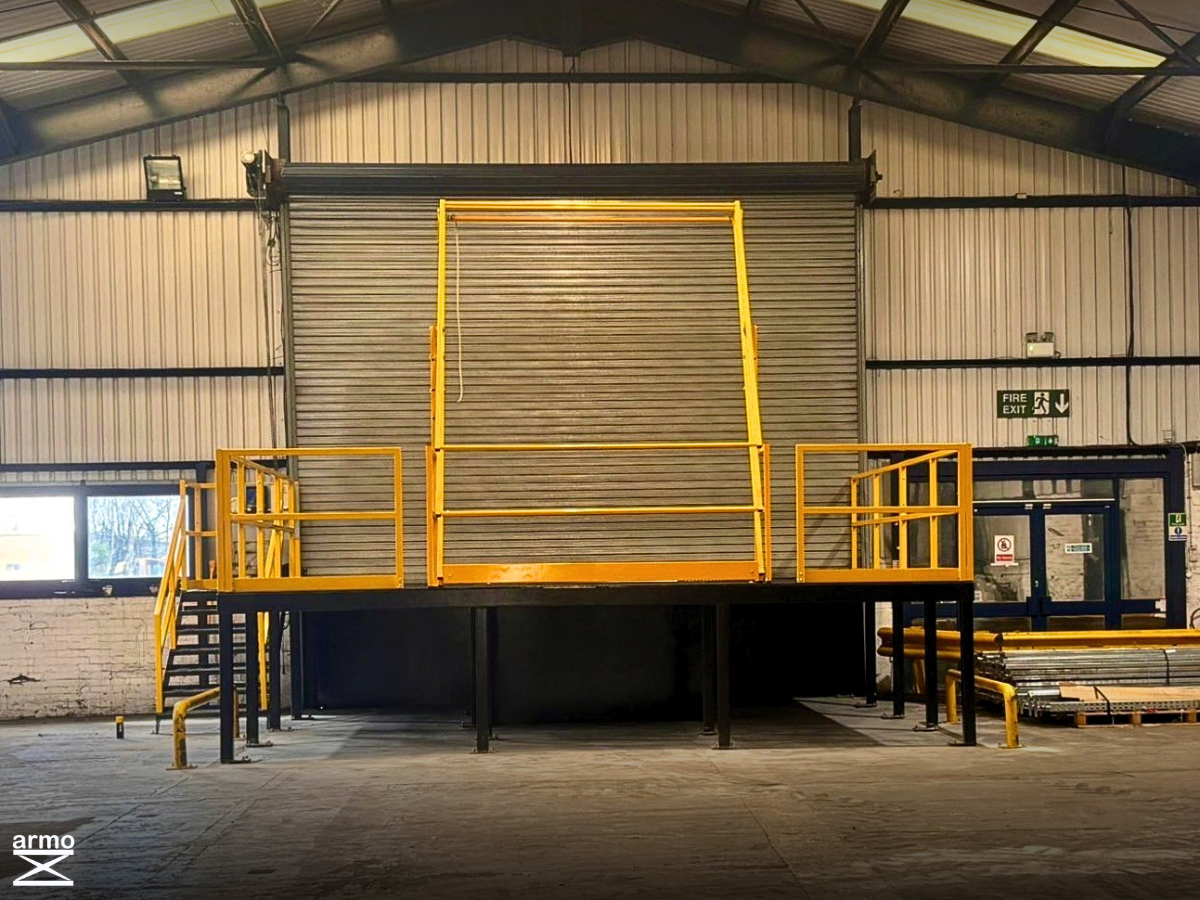

• Model ARMD – 6000mm (W) x 6000mm (L) modular dock complete with safety guarding, pedestrian access staircase, and safety pallet gate.

• Model ARTR – 2000mm (W) x 3000mm (L) telescopic lip dock leveller, complete with Model ARDB polyethylene buffers, integrated within the modular dock structure

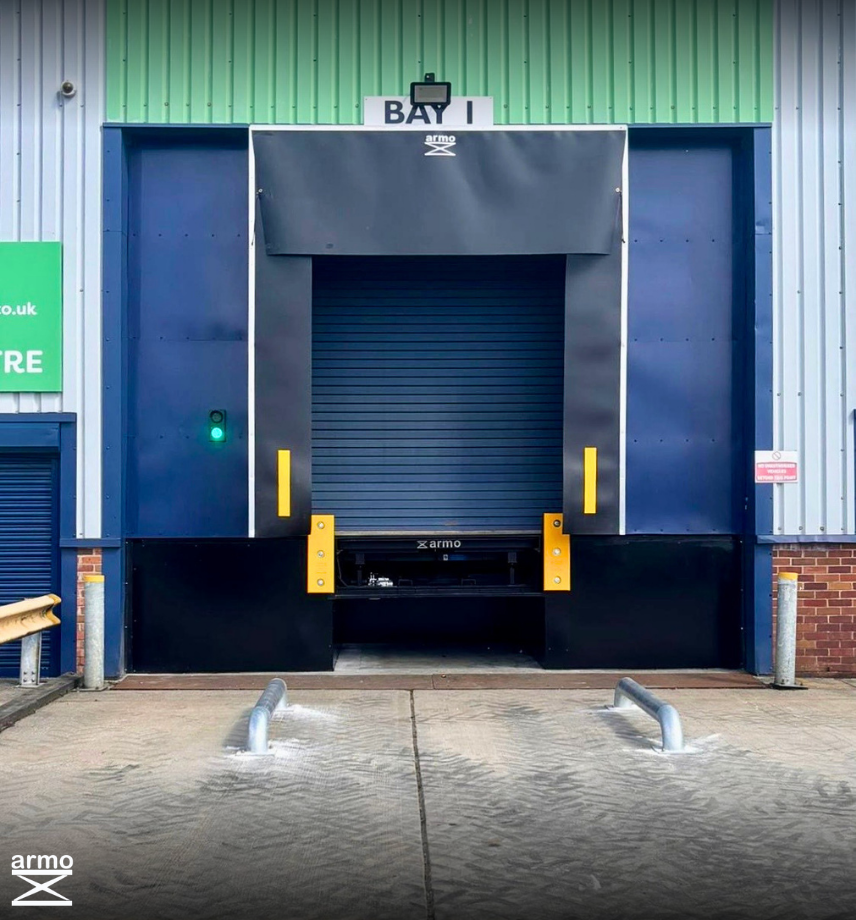

• Model ARSR – 3500mm (W) x 3800mm (H) dock shelter with infill flashings to reduce the existing door opening width and ensure a secure seal during loading operations.

• Model ARTR LED traffic light system, interlocked with the existing door to enhance loading bay safety.

• Model ARBD wheel alignment guides to accurately centralise reversing trailers onto the dock leveller.

The completed installation has provided the client with a safe, efficient, and purpose-built loading solution, and we’re delighted that they are extremely pleased with the final result.

Armo have been manufacturing high quality loading bay and lifting table solutions since 1973 for further technical or pricing information, please contact us.
